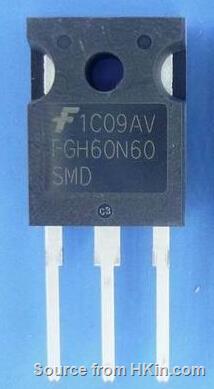

| Part Number: | FGH60N60SMD |
| Product Name: | FGH60N60SMD Transistors - IGBTs - Single |
| Merchant-Specific Identifier: | FGH60N60SMD |
| Category: | Discrete Semiconductor Products > Transistors - IGBTs - Single |
| Brand: | Fairchild/ON Semiconductor |
| Description: | IGBT 600V 120A 600W TO247 |
| Series: | Automotive, AEC-Q101 |
| Packaging: | Tube |
| IGBT Type: | Field Stop |
| Voltage - Collector Emitter Breakdown (Max): | 600V |
| Current - Collector (Ic) (Max): | 120A |
| Current - Collector Pulsed (Icm): | 180A |
| Vce(on) (Max) @ Vge, Ic: | 2.5V @ 15V, 60A |
| Power - Max: | 600W |
| Switching Energy: | 1.59mJ (on), 390µJ (off) |
| Input Type: | Standard |
| Gate Charge: | 280nC |
| Td (on/off) @ 25°C: | 22ns/116ns |
| Test Condition: | 400V, 60A, 3 Ohm, 15V |
| Reverse Recovery Time (trr): | 42ns |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | TO-247-3 |
| Supplier Device Package: | TO-247-3 |
Part Number
Brand
D/C
Qty
Price (USD)
Qty
FGH60N60SMD ON 20+ 0
ON
20+
3000
USD 0
FGH60N60SMD ONSEMI 22+23+ 0
ONSEMI
22+23+
9000
USD 0
FGH60N60SMD FAIR 0
FAIR
10000
USD 0
FGH60N60SMD ONSEMI 23+ 0
ONSEMI
23+
1890
USD 0
